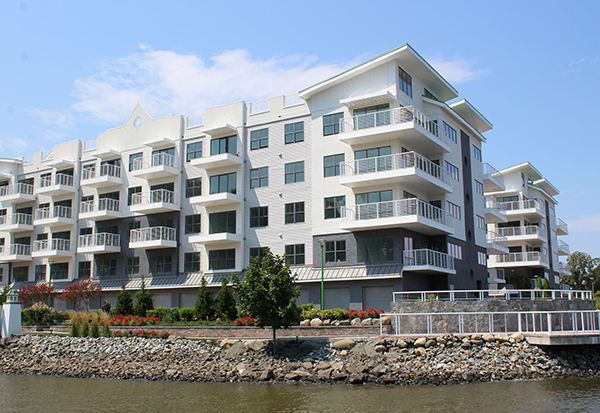

The new Admirals Cove housing development is situated directly on the Hudson River in Rockland County, NY. Crystal Window & Doors' supplied this project with almost 1,100 double-hung windows, fixed/picture windows, and sliding glass doors. The four six-story buildings that make up the Admirals Cove development at 1100 Admirals Cove Boulevard in Haverstraw, NY, are located on a peninsula on the west bank of the Hudson River.
What the company says
“This project is one of the latest projects in the Hudson River Valley from the noted Ginsburg Development team,” says Blaise Benevenga, Crystal Regional Sales Manager. “Crystal has supplied several other important Ginsburg projects in New York, including River Tides at Greystone in Yonkers and Harbor Square in Ossining, and we were proud to be selected once again as their fenestration manufacturer of choice.”
Crystal's involvement in Admirals Cove
The Admirals Cove project was furnished with a total of 1,088 Crystal aluminum windows in several models and styles. With over 500 units supplied, the Crystal aluminum Series 2000A Double-Hung was the most prevalent window. Single units, twin units using a common master frame, and tripled mulled combinations of the Crystal double-hung windows, some up to 109-inch wide, provide residents with expansive views and fresh air as well as thermal efficiency. The Series 2000A is a thermally-broken 3-¼-inch frame depth mainstay of the Crystal product line. AAMA rated at CW-PG50, the window features a ⅞-inch glazing pocket, anti-drift head clip lock, fast-draining sloped sill, and tilt-in top and bottom sashes.
The next most specified Crystal product, at just over 400 windows, was the aluminum Series 2100 Fixed/Picture window. Most were single or common frame horizontal twin units, although some expansive openings up to 138-inch wide utilized three- and four-window mulled combinations. To provide views, in other instances 84-inch tall, virtually floor-to-ceiling Series 2100 windows were installed. To add a porthole-like nautical flair to the waterfront buildings, Crystal custom fabricated and supplied 34 full circle 36-inch diameter round versions of the aluminum Series 2100 fixed/picture window. The Series 2100 Crystal windows feature strong 3-¼-inch deep frames, ⅞-inch insulated glass units, and a CW-PG65 rating.
Providing access to apartment balconies, Crystal supplied 172 two- and three-lite Series 1240 Sliding Glass Doors and 13 matching Series 1270 Sidelights. The Series 1240 doors feature 4-9⁄16-inch frame depths, 1-inch glazing pockets, heavy-duty adjustable quad tandem ball bearing rollers, and an LC-PG45 rating. The matching Series 1270 sidelight with the same frame depth and glazing pocket as the door has an outstanding AW-PG75 structural rating.
The various Crystal windows, doors, and sidelights were factory supplied with either ⅞-inch or 1-inch double-pane insulated glass units (IGUs). For enhanced thermal performance, the IGUs were specified with Vitro low E Solarban 60 glass and Argon gas filling. Where required, tempered glass was used.
As a decorative element, many of the windows included between-the-glass ⅝-inch colonial grids. Some of the double-hung upper sashes included a single vertical grid and the round windows a crossed horizontal and vertical pattern.
To facilitate installation, all the Crystal window and door products were fitted with optional snap/slide on nailing fins. Other accessories included 3-¼-inch and 4-½-inch H-mullions for combining windows and sidelights. All Crystal windows, doors, sidelights, and exposed accessories were finished in an environmentally sustainable and durable AAMA 2604 medium gray powder coat paint.
Who else was involved
The developer as well as the builder for the Admirals Cove project was Ginsburg Development Companies of Valhalla, NY. The project architect was Appel Design Group of Livingston, NJ. Ginsburg framing crews installed the Crystal window and door products.
About Admirals Cove
Admirals Cove is comprised of four buildings with waterfront-inspired architecture and 245 studio, one-, two-, and three-bedroom apartments. Premium units have balconies with river views. The buildings each have their own lobby, fitness center, lounges, and ground floor garages. Common amenities include an outdoor pool, sundeck, firepits, grills, playground, kayak launch, Zen garden, and waterfront promenade. The complex is adjacent to a commuter ferry to Ossining, NY across the Hudson River, and the Metro North Railroad station with service to Grand Central Station in New York City.
